Topplock
Edelbrock : 77419
Artikelnr: EDE77419

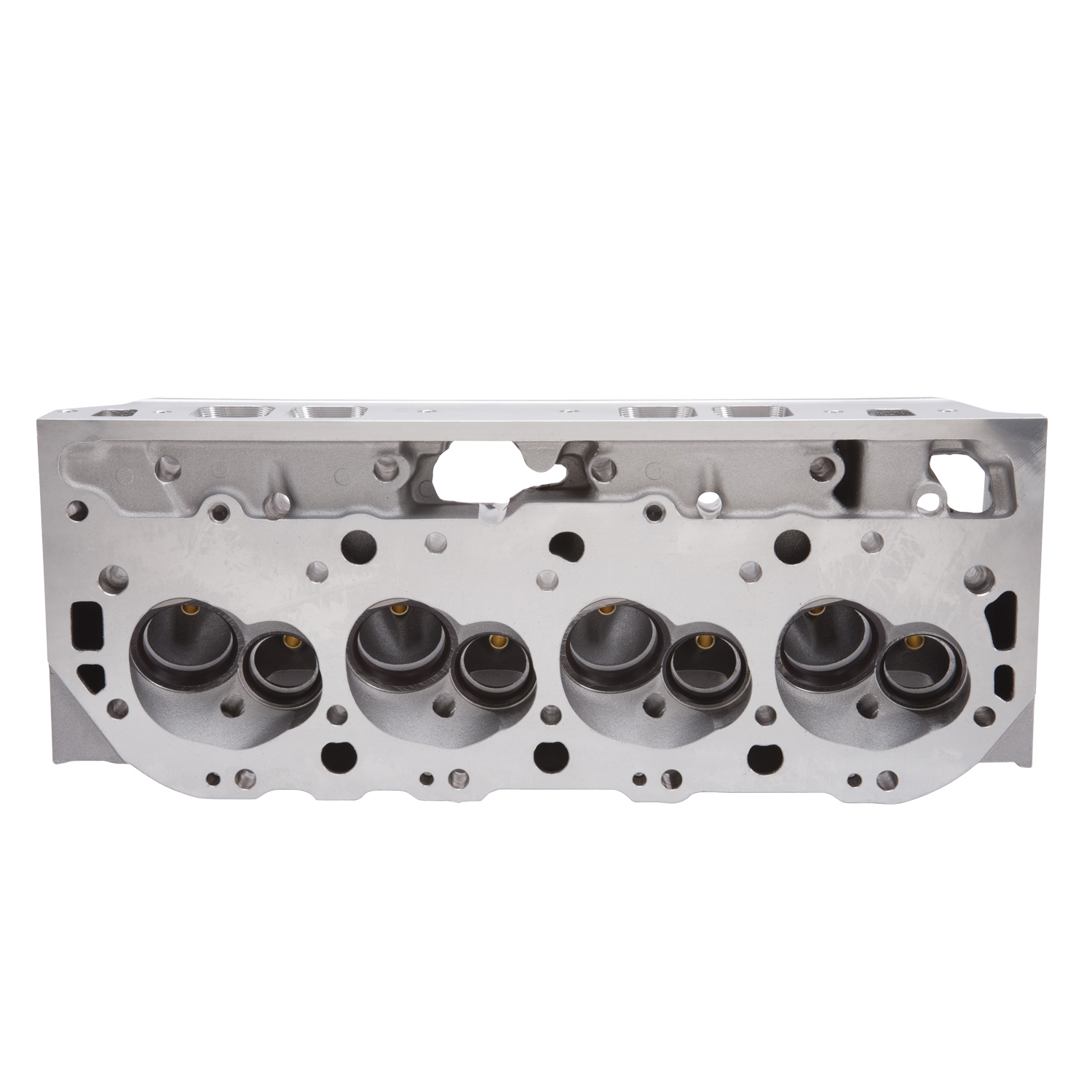

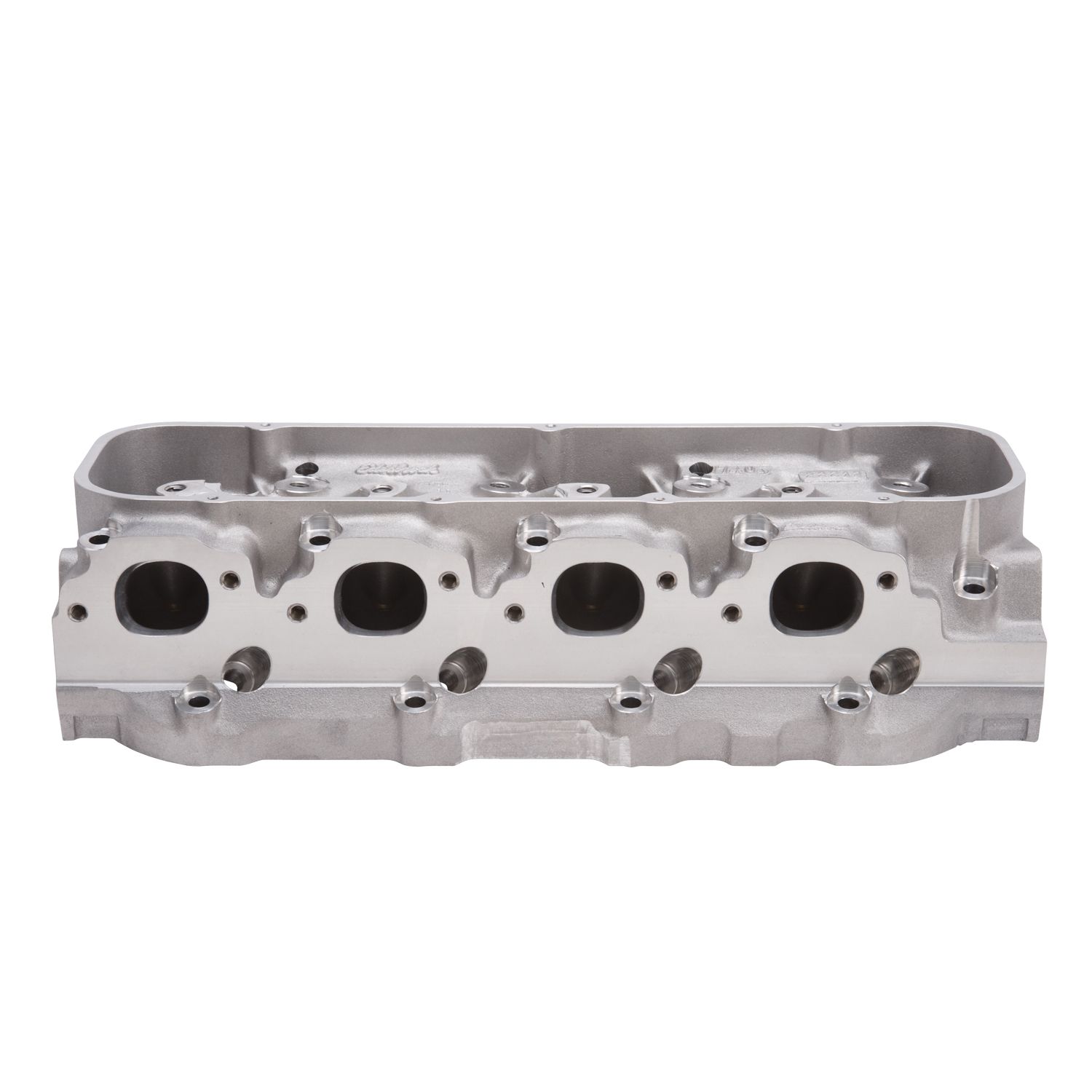

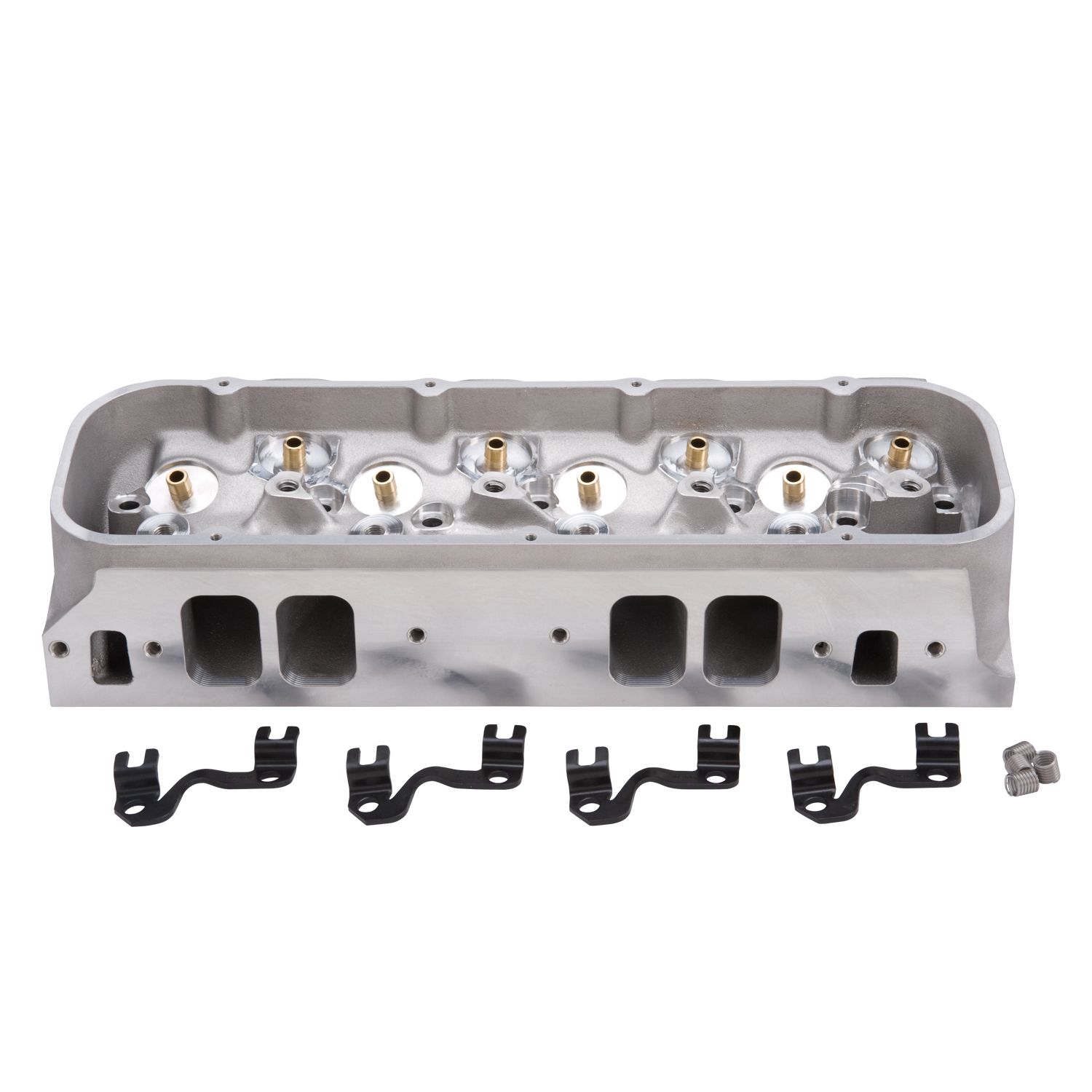

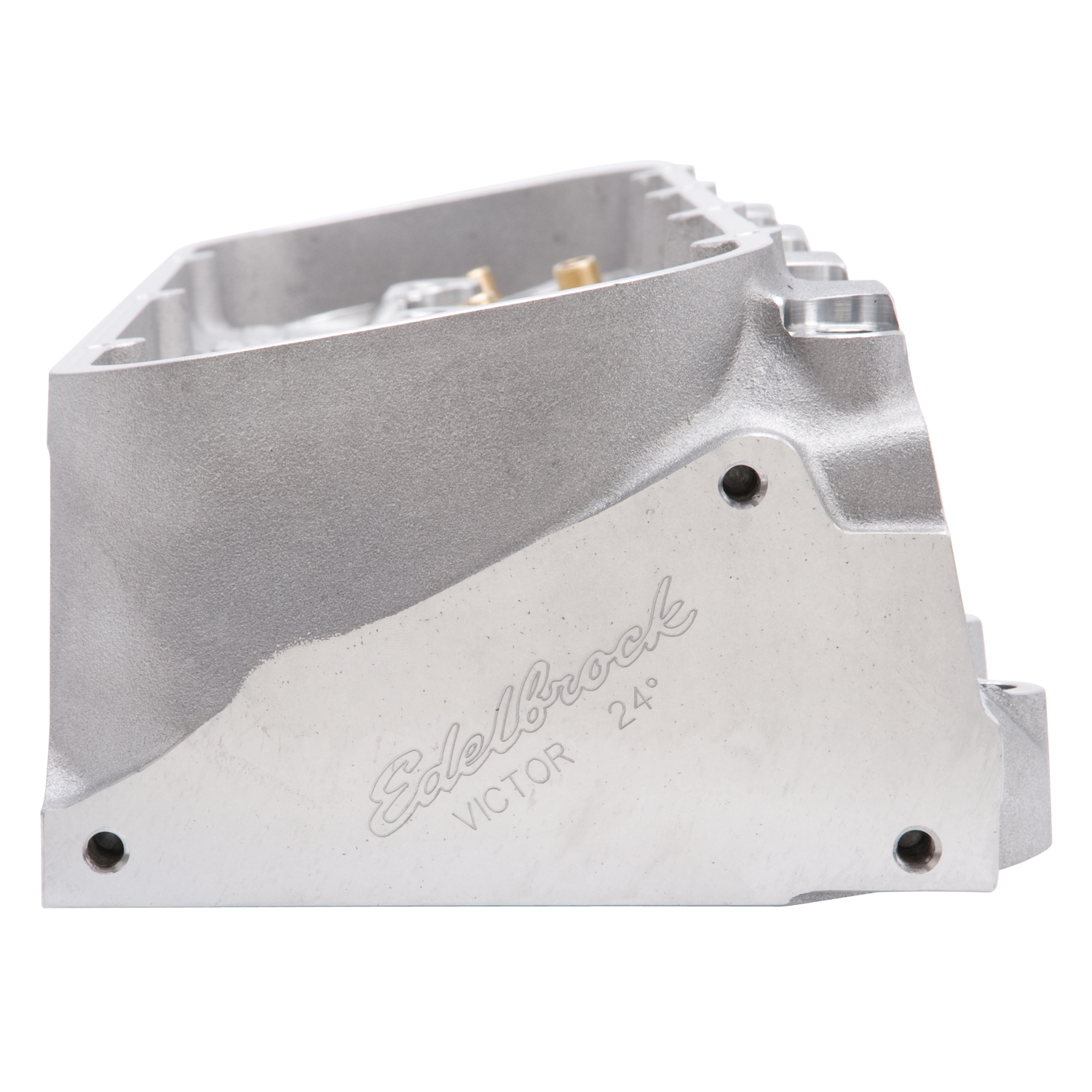

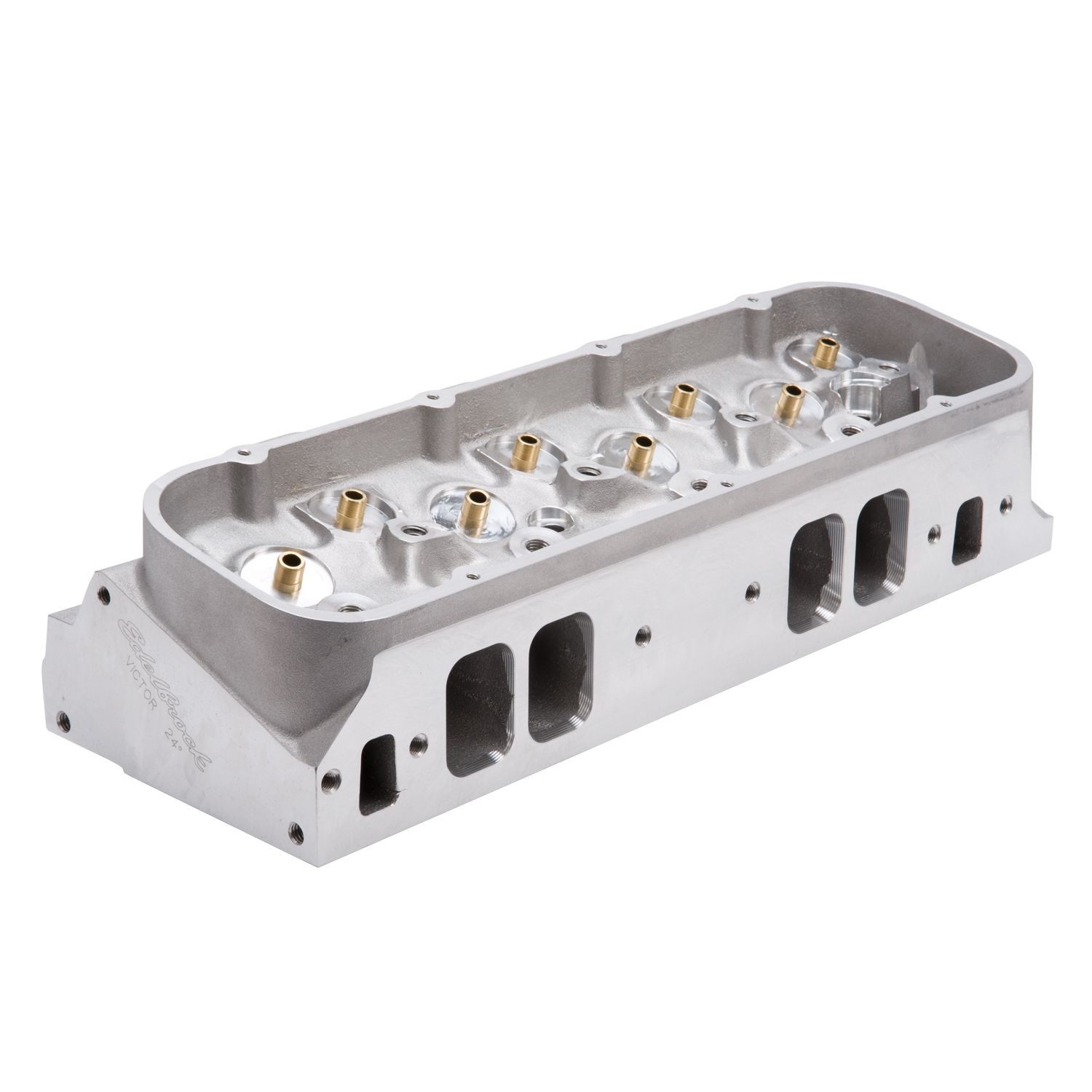

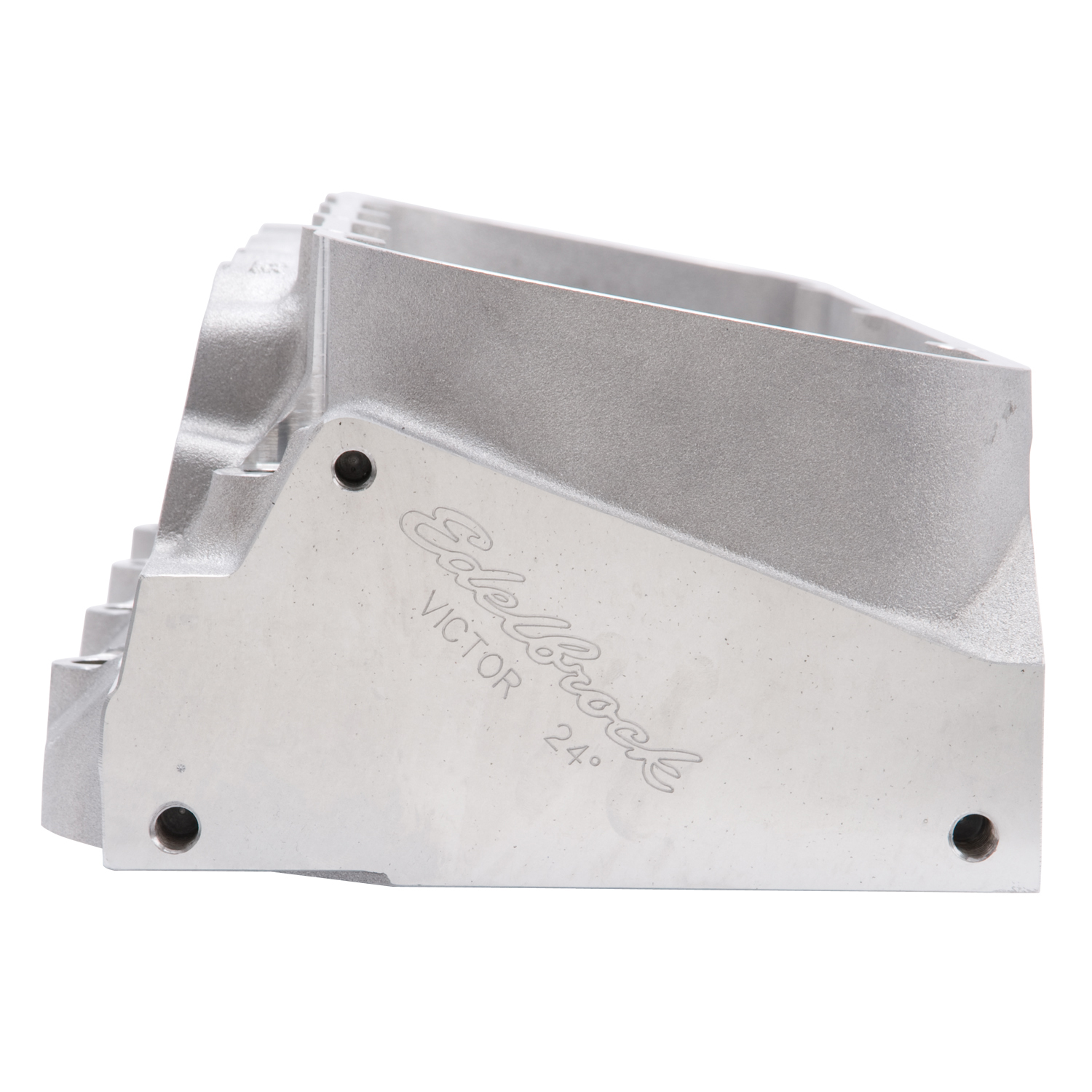

The Edelbrock part # 77419 Victor 24° 340cc cylinder head features a rolled over deck, altered valve locations and partially CNC'd 199cc chambers for cost effective performance. The Edelbrock 77419 cylinder head comes bare and will need a final valve job and guide sizing before use. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534".
- CNC Ported: No
- Combustion Chamber Volume: 119 CCM
- Construction Type: Bare
- Deck Thickness: 0.5625 IN
- EGR Port: No
- Exhaust Port Location: +.500 IN
- Exhaust Runner Volume: 128 CCM
- Family: Victor
- Flange Type: Rectangle Intake
- Grade Type: Performance
- Guide Material: Manganese Bronze
- Guide Plates Included: No
- Head Casting Number: N/A
- Horsepower: 650-800 HJ
- Intake Runner Volume: 340 CCM
- Material: Aluminum
- Quantity: Sold Individually
- Retainer Included: No
- RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Seat Angle: Exhaust 45 deg/Intake 45 DD
- Seat Material: Ductile Iron
- Series: Victor
- Valve Angle: 24 DD
- Valve Included: No
- Valve Springs Included: No
Edelbrock topplock är tillverkade i USA och erbjuder det bästa inom kvalitet och prestanda. Genom att använda högeffektiva portdesigner och toppmoderna former på förbränningsrum erbjuder Edelbrocks topplock förbättrad prestanda i hela varvtalsregistret för bra gasrespons och ökad effekt på höga varvtal. Edelbrock har även kamaxlar anpassade till dessa toppar.
- Fabrikat: Chevrolet
- Motortyp: Big Block
