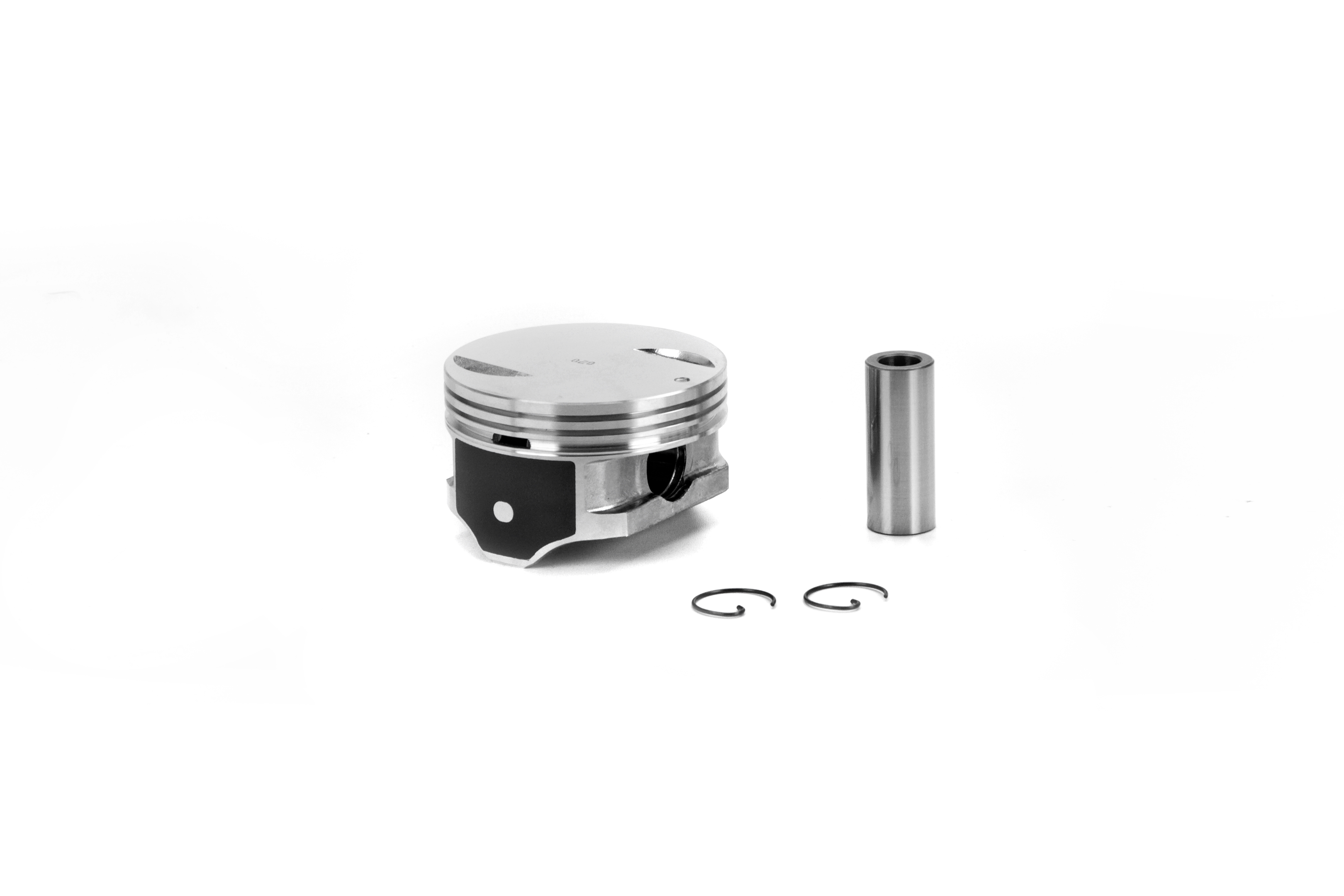

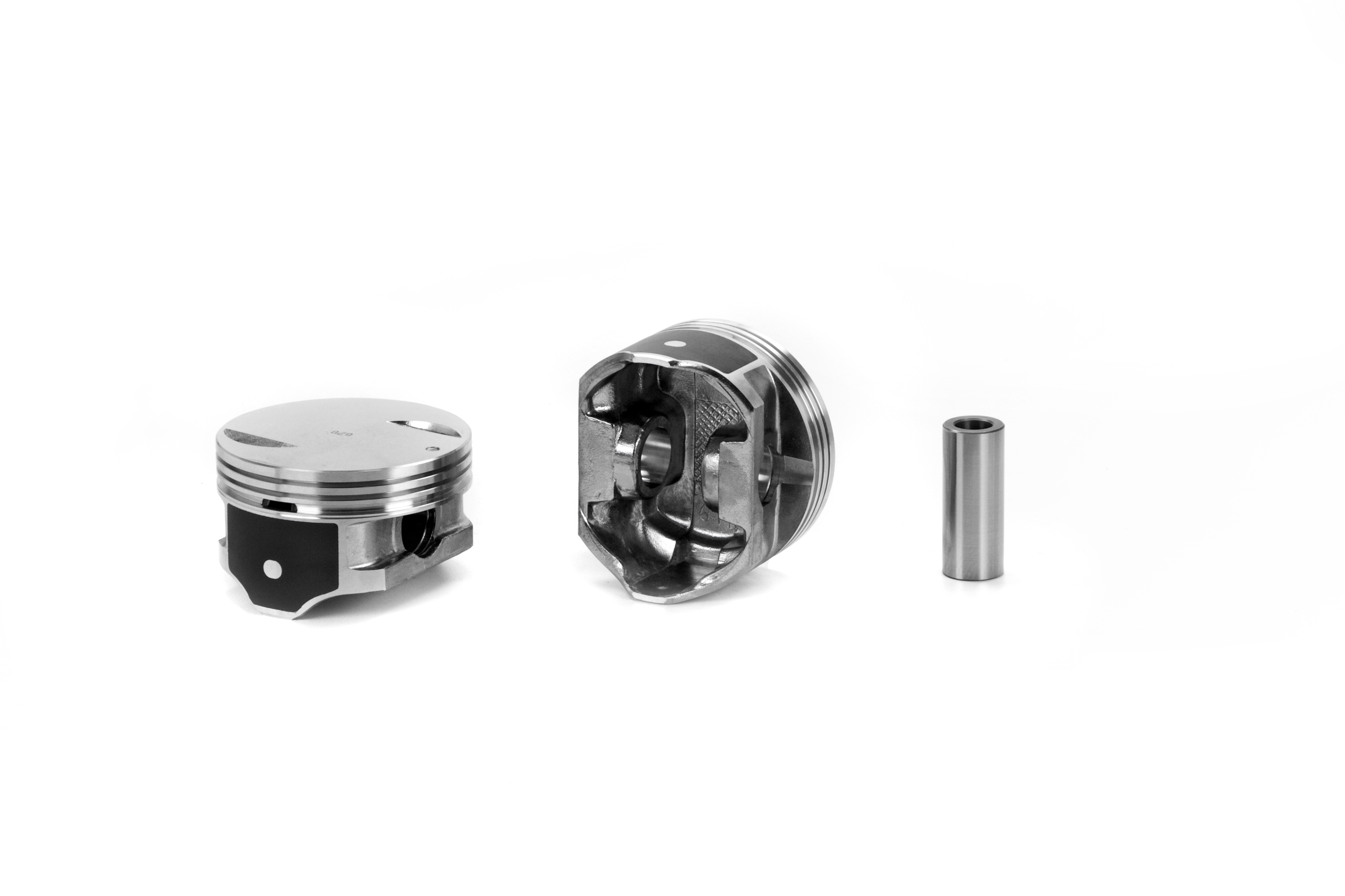

Kolv
Silv-O-Lite : 3494HC.030
Artikelnr: SIV3494HC.030
OBS! Endast flytande passning i vevstake
- Base Number: 3494HC
- Bore Diameter: 4.25 IN
- Compression Height: 1.355 IN
- Compression Ratio: 9.1
- Crown Type: FLAT TOP
- Eng. Disp Liters: 8.1
- Eng. Disp. In.: 496
- Engine Family: Chevy Big Block Gen VII
- Engine Manufacturer: Chevrolet
- Lock: SRW-010
- OE Assembly: 12569473
- Oil Ring Thickness: 4.0000 MM
- Oversize: .030
- Oversized: Yes
- Oversizes: STD .020 .030 .040 .060
- Pin Configuration: Offset
- Pin Number: 1040x219A
- Pin Type: Floating
- Piston Head Type: Flat
- Piston Material: Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter: 1.04 IN
- Ring Pack: 2.0mm, 2.0mm, 4.0mm Shallow Oil Groove
- Second Compression Ring Thickness: 2.0000 MM
- Sold As: Sold as a set, priced per piece
- Top Compression Ring Thickness: 2.0000 MM
- Top Land: .200
- VIN Code: G
- Year From: 2001
- Year Range: 2001-2004
- Year To: 2004
- 12569473: Chevrolet
- H880CP: Sealed Power
- Motorfamilj: Chevy Big Block Gen VII
- Överdimension Tum: 0,3
- Överdimension: .030
- Motorstorlek: 496
