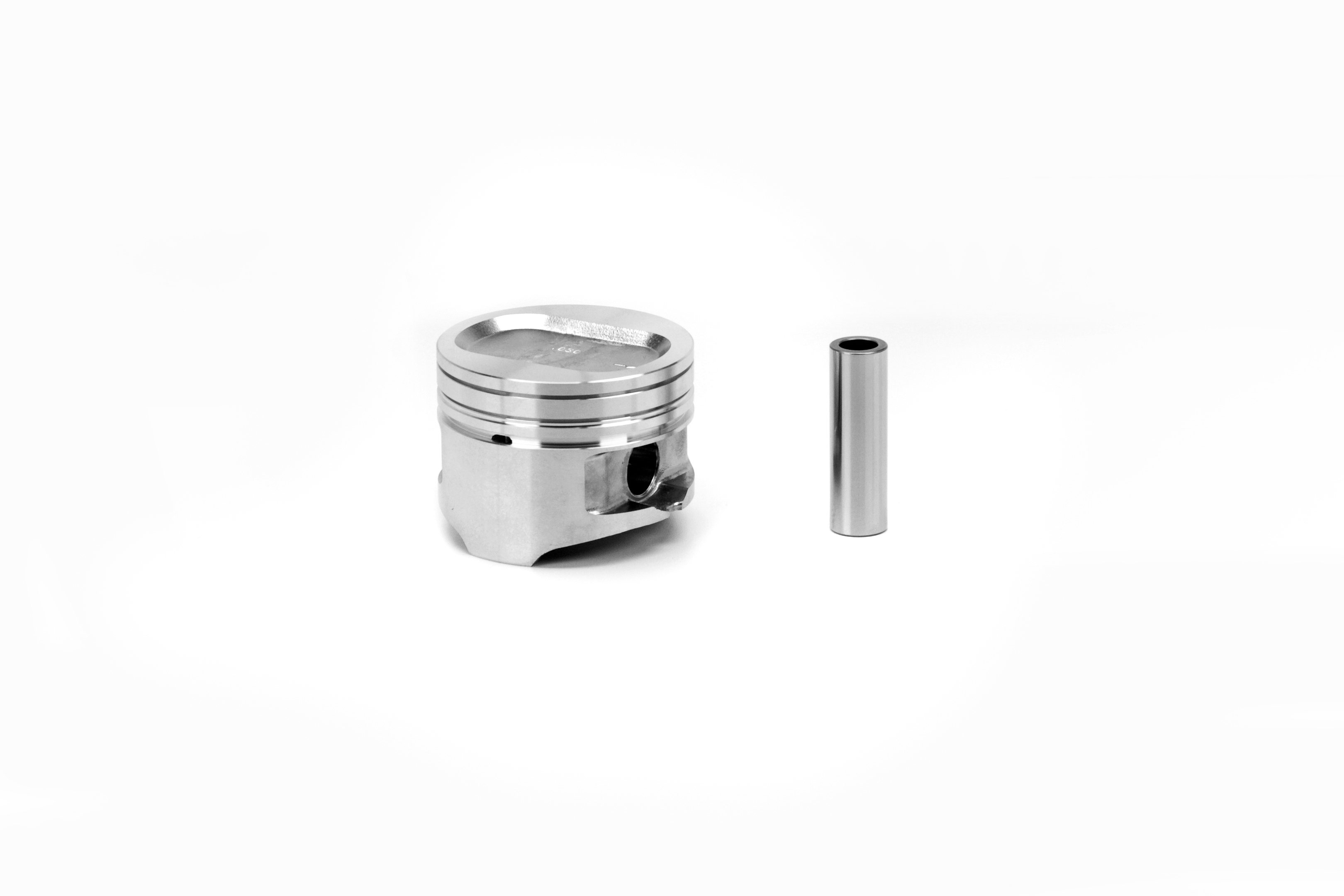

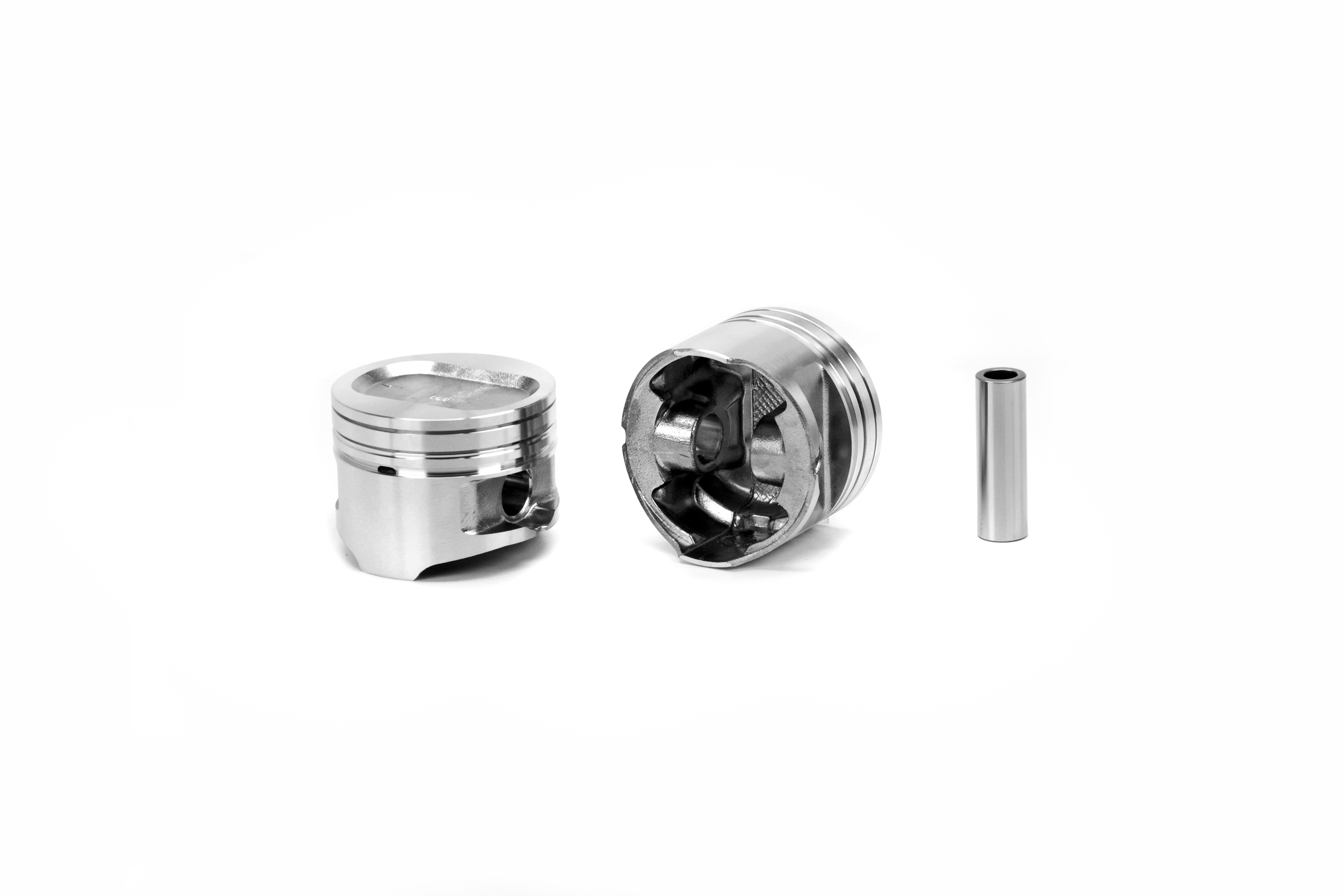

Kolv
Silv-O-Lite : 3154H.STD
Artikelnr: SIV3154H.STD
Ersätter SEA416P
- Base Number: 3154H
- Bore Diameter: 4 IN
- Compression Height: 1.77 IN
- Compression Ratio: 8.8
- Crown (cc): +17.5cc
- Crown Type: DISH
- Eng. Disp Liters: 5.8
- Eng. Disp. In.: 351
- Engine Family: Ford Small Block Windsor
- Engine Manufacturer: Ford
- OE Assembly: F4TZ6108A
- Oil Ring Thickness: 4.0000 MM
- Oversize: STD
- Oversized: No
- Oversizes: STD .020 .030 .040 .060
- Pin Configuration: Offset
- Pin Number: 0912x301A
- Pin Type: Press
- Piston Head Type: Dish
- Piston Material: Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter: .912 IN
- Ring Pack: 1.5mm, 1.5mm, 4.0mm Shallow Oil Groove
- Second Compression Ring Thickness: 1.5 MM
- Sold As: Sold as a set, priced per piece
- Top Compression Ring Thickness: 1.5 MM
- Top Land: .218
- VIN Code: H
- Year From: 1994
- Year Range: 1994-1997
- Year To: 1997
- 1158:
- 1376P:
- 224-1810:
- 224-1917:
- 224-2808: MAHLE
- 3330:
- 3856752: Volvo Penta
- 416P:
- 80008B: Ford
- 8158P:
- 843H: Moresa
- 91158:
- 967: Moresa
- 998P:
- A70425P: Ford
- BADP727: Replaced
- BADP799H: Replaced
- C9OE-6110D:
- C9OZ-6108G:
- C9OZ-6108H:
- D2AE-6110KA:
- D2AZ-6108N:
- D2AZ-6108P:
- D3DZ-6108G:
- D3OE-6110AA:
- D3OZ-6108G:
- D3OZ-6108H:
- D7DZ-6108A:
- D7DZ-6108B:
- D9AZ-6108G:
- F3TZ6108A:
- F4TZ6108A: Ford
- F4TZ6108DB: Ford
- F4TZ6108EB: Ford
- F4TZ6108FB: Ford
- F4TZ6108LA: Ford
- F4TZ-6108LA:
- F4TZ6108MA: Ford
- F4TZ6108NA: Ford
- F4TZ-6108NA:
- H3154:
- H621P: Sealed Power
- L3004F:
- P1526:
- P2156AX:
- P351FW2: Vehyco
- P738:
- P738-STD:
- P799H:
- P799H-STD:
- SEA416P: Replaced
- SEAH621P: Replaced
- SIV3154H.STD: FORD
- SP25-160: Safety Auto Parts Corp
- TC1810:
- TC1917:
- TC2808:
- Z30058:
- Z30058 STD:
- Motorfamilj: Ford Small Block Windsor
- Överdimension: STD
- Motorstorlek: 351
